How to Use a Laser Level for Beginners
You spend an hour with a tape measure and a 4-foot bubble level trying to get a single straight reference line. Your neighbor hands you a laser level. Job done in ten minutes.
A laser level projects a precise reference line onto walls, floors, or ceilings. You set it once, then mark along the beam. This guide covers everything from setup to your first project: choosing the right type, reading the leveling signals, marking accurately, and the three mistakes that catch most first-time users.
Which Laser Level Matches Your Job
Cross-Line Lasers for Indoor Work

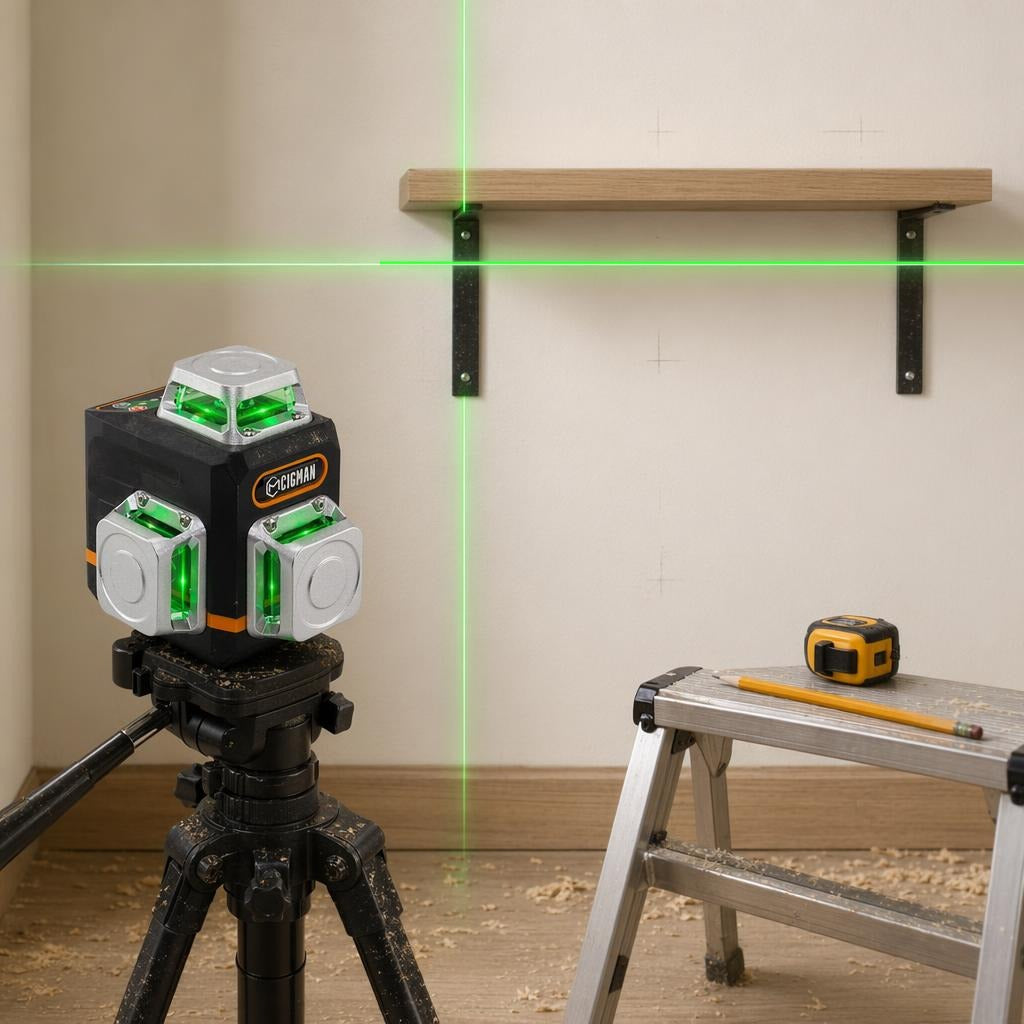

A cross-line laser projects a horizontal line, a vertical line, or both simultaneously. For most indoor tasks like hanging shelves, installing cabinets, tiling, and framing walls, this is the right type. A 3x360° model like the CM-701 projects three full planes across all four walls from a single position, so you set it once and reference every wall without repositioning.
For help matching specific models to your project type, see our guide on choosing the right laser level.
Rotary Lasers for Large Outdoor Sites
Rotary lasers spin the beam continuously to create a level reference around the perimeter of a large site. They're the right tool for setting foundation elevations, grading lots, or leveling posts across 100 feet or more. For indoor work and most DIY projects under 50 feet, a cross-line laser sets up faster and reads more clearly without a detector.
When a Bubble Level Is Still the Right Tool
A laser level isn't always faster. Checking whether a single cabinet is plumb takes seconds with a 2-foot bubble level. Detecting small dips over a 6-foot span is faster and more precise with a metal straightedge than a laser line. Laser levels earn their keep when you need the same reference point across a large area: a full wall, an entire room, or multiple posts.
How to Set Up and Level Your Laser Level
Choose a Stable Surface or Tripod
Place the laser on a solid, flat surface: a concrete floor, workbench, or tripod. Carpet and soft ground compress unevenly under the base and can shift mid-project, moving the reference line without any visible warning. Most laser levels have a 1/4"-20 threaded socket on the bottom that fits any standard camera tripod. A tripod lets you set the beam at a specific working height and lock it there without drift.
The CM-701T comes with a 1.2m tripod included at $209.99 if you don't already own one. For most indoor work, the CM-701 alone on a flat surface is stable enough.
Power On and Read the Leveling Signals
Turn on the unit and wait. Self-leveling laser levels use an internal pendulum or electronic compensator to find horizontal within their operating range, typically ±4 degrees for most consumer models, including the CM-701. The beam steadies when leveling is complete, usually within 5 to 10 seconds on a stable surface.
Signals to watch:
- Solid beam: leveled and ready to mark
- Blinking beam: out of level range, still compensating, or surface too tilted. If the beam blinks continuously on a flat surface and never steadies, check the lock switch first. The lock switch pins the pendulum during transport. With it engaged, the beam blinks no matter how level the surface is. Flip it to the unlock position and the unit will level normally within seconds
- Audible beep: out-of-level alert on models that include it
Marking before the beam steadies is the most common first-use error. If the compensator is still working when you draw your first reference point, every subsequent mark will be off by the same amount, and you won't notice until the project is finished.
Pro Tip: After the beam steadies, wait 30 seconds before marking. Bringing a cold unit into a warm room causes slight thermal drift in the first minute of operation that can shift the line a few millimeters.
Manual Leveling with Bubble Vials
Laser levels without auto-leveling use bubble vials. Adjust the leveling feet or tripod legs until the bubble sits centered in each vial, then check again after moving the unit. Vials shift on uneven surfaces. Once centered, the projected beam is level and ready to use.
How to Mark Reference Lines and Work Along the Beam
Marking Indoors
Use a pencil to mark the beam position at two or three points across the span. For a continuous guide, connect the marks with a chalk line. For tile layout, mark the starting grid lines directly from the beam and verify with a square before setting the first row. The beam gives you level, not square.
When working across a full room, check the beam height at two opposite walls before starting. Houses are rarely square, plumb, or level. If the ceiling slopes, the beam will hit the far wall at a different apparent height. That's expected. The beam is accurate; the room isn't. Work from the beam, not from the floor or ceiling.
Outdoor Use and Bright-Light Visibility
In direct sunlight, a laser beam becomes invisible to the naked eye beyond about 20 to 30 feet. Green beams stay visible farther than red in bright conditions, but neither is reliable in strong sunlight without a receiver. For outdoor projects like deck posts, attach a laser receiver to a grade rod or stake. It signals the beam position with an audible tone regardless of ambient light.
Working outdoors and assuming the beam is present simply because the unit is on leads to layout errors that are hard to catch until the project is done. If you cannot see the beam, you cannot verify alignment. Use a receiver or work in lower-light conditions.
Three Mistakes First-Time Users Make
Placing the laser on carpet or soft ground. Carpet compresses unevenly under the base, and soft soil shifts with temperature and moisture. Both can cause the unit to settle mid-project and move the reference line. Use a hard, flat surface or mount the laser on a tripod for any job that takes more than a few minutes.
Not accounting for beam color in bright conditions. The difference between red and green laser beams matters most in lit rooms and outdoors. A red beam at 650nm fades to near-invisible in daylight. A green beam at 532nm holds visibility farther in the same conditions. If you can't see the line, you're guessing at alignment.
Leaving the transport lock switch engaged. Most self-leveling laser levels have a lock switch that pins the internal pendulum during shipping so it doesn't swing and damage the casing. With the lock engaged, the beam blinks continuously and never settles into a stable line. Real users have spent two hours troubleshooting this — the fix is a single switch flip. On the CM-701, find the lock switch on the side panel. If you see constant blinking on a flat surface, that's almost always the cause.
Trusting the level reading when the result still looks wrong. There's a difference between true level and visual level. A shelf installed exactly along the laser line can still look crooked if the ceiling above it slopes. The laser is accurate; the room isn't. For ceiling work, measure down from the beam rather than up from the floor. That way, sloped floors and ceilings don't affect your reference.
CIGMAN Laser Levels for These Tasks
The CM-701 has shown up in real projects beyond home improvement basics. Amazon customers have used it to line up can lights over a 25-foot distance, keep a paver patio squared up over 30 feet, and work through gallery walls of 60 to 70 picture frames in a single session. It handles one-off jobs and extended projects equally well.
| CM-G01 | CM-701 | CM-701T | |
|---|---|---|---|
| Lines | 2 (cross-line) | 12 (3x360°) | 12 (3x360°) |
| Self-leveling | Yes, ±4° | Yes, ±4° | Yes, ±4° |
| Accuracy | ±0.3mm/m | ±0.3mm/m | ±0.3mm/m |
| Battery | AA batteries | USB-C rechargeable | USB-C rechargeable |
| Tripod | Not included | Not included | 1.2m tripod included |
| Price | $36.99 | $149.99 | $209.99 |
| Best for | Single-wall, occasional use | Full-room layout, daily use | Full-room layout, needs tripod |
The CM-G01 handles hanging pictures, single shelves, and quick alignment tasks. The CM-701 manages full-room layouts covering tile, cabinets, and framing from one setup position. The CM-701T adds a 1.2m tripod for those who don't already own one.
Frequently Asked Questions
What does it mean when my laser line is blinking?
A blinking beam means the unit is outside its self-leveling range. The surface is tilted beyond what the compensator can correct, typically more than ±4 degrees. Move the laser to a flatter surface or adjust the tripod legs until the beam goes solid. Some models also blink when the battery is low, so check the charge level if repositioning doesn't help.
Do I need a tripod for a laser level?
Not always. For work at a fixed height like hanging pictures or marking a tile layout on the floor, a flat countertop or the floor itself works fine. A tripod becomes useful when you need the beam at a specific height above the floor, when working on uneven ground, or when you plan to leave the laser running for an extended session without touching it. The CM-701T includes a 1.2m tripod.
Can I use a laser level outdoors?
Yes, but direct sunlight makes the beam invisible to the naked eye beyond 20 to 30 feet. Use a laser receiver. It clips to a grade rod and detects the beam with an audible signal in full daylight. Both the CM-701 and CM-G01 are compatible with standard laser receivers. Green beams stay visible farther than red in bright conditions, but a receiver is more reliable than beam color alone for outdoor accuracy.
How often should I recalibrate a laser level?
Recalibrate after any drop or impact, and run a quick field check before any precision job. The check takes about two minutes: project a horizontal line onto two opposite walls, mark each spot, rotate the unit 180 degrees, and verify the beam hits the same marks. If it misses by more than a couple of millimeters, the unit needs calibration or service. With careful handling, checking once every few months is reasonable.
Is it safe to look at a laser level beam?
A brief accidental glance is generally safe. Most consumer laser levels are Class 2 devices, and the blink reflex limits exposure. Staring directly into the beam or receiving a reflection from a polished surface can cause eye damage. OSHA construction standards prohibit directing the laser beam at people, require posting laser work areas with warning placards, and require eye protection where exposure can exceed 5 milliwatts [1].
References
- U.S. Occupational Safety and Health Administration, "29 CFR 1926.54: Nonionizing Radiation," OSHA Construction Industry Standards, Subpart D. [Online]. Available: https://www.osha.gov/laws-regs/regulations/standardnumber/1926/1926.54 Verified: June 2026.
- International Electrotechnical Commission, "IEC 60825-1:2014, Safety of Laser Products, Part 1: Equipment Classification and Requirements," IEC, 2014. [Online]. Available: https://webstore.iec.ch/en/publication/3587 Verified: June 2026.
- J. Galang, A. Restelli, E. W. Hagley, and C. W. Clark, "A Green Laser Pointer Hazard," NIST Technical Note 1668, National Institute of Standards and Technology, 2010. [Online]. Available: https://tsapps.nist.gov/publication/get_pdf.cfm?pub_id=906138 Verified: June 2026.
